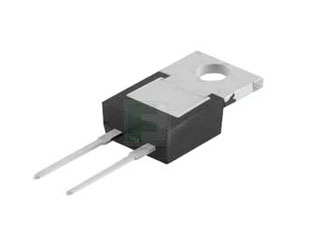

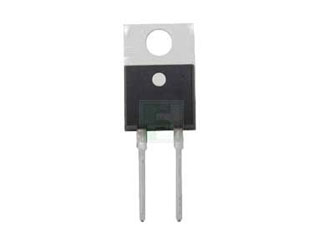

The MBR1645-E3/45 is a schottky barrier rectifier with average forward rectified Current of 16 A and reverse voltage of 45 V. Available in TO-220AC.
Features:
Guardring for overvoltage protection
Low power loss, high efficiency
Low forward voltage drop
High forward surge capability
High frequency operation
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for TO-220AC and ITO-220AC package)
AEC-Q101 qualified
Applications:
Low voltage
High frequency rectifier of switching mode power supplies
Freewheeling diodes
DC/DC converters
Polarity protection application
Категория:
Диоды Шоттки
Артикул:
8498917
Наличие:
721
-
Package Style:
TO-220-2 (TO-220AC)
-
Mounting Method:
Flange Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
Vishay
-
Тикер производителя:
GS
-
Модель модификации:
MBR1645-E3/45
-
Модель:
tube
-
Артикул (SKU):
8498917
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--scottky-rectifiers/mbr1645-e3-45-vishay-8498917
-
Forward Voltage:
0.63V
-
Reverse Current-Max:
0.2mA
-
Reverse Voltage-Max [Vrrm]:
45V
-
Peak Current-Max:
1800A
-
Average Rectified Current-Max:
16A
-
Скачать Datasheet mbrf16xx.pdf:
http://www.vishay.com/docs/88671/mbrf16xx.pdf
