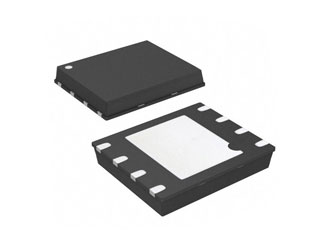

EEPROM 2кБ M24C02-RMC6TG I2C 400кГц -40°C...+85°C STMicroelectronics

The M24C02-RMC6TG is a Serial I²C-compatible electrically erasable programmable memory (EEPROM). This is organized as 2 Kb (256 X 8) with a temperature range of -40°C to 85°C. The M24C02-RMC6TG is a Serial I²C-compatible electrically erasable programmable memory (EEPROM). This is organized as 2 Kb (256 X 8) with a temperature range of -40°C to 85°C. Features: Supports both the 100 kHz I2C Standard-mode and the 400 kHz I2C Fast-mode Single supply voltage: 2.5 V to 5.5 V for M24Cxx-W 1.8 V to 5.5 V for M24Cxx 1.7 V to 5.5 V for M24Cxx-F 2.5 V to 5.5 V for M24Cxx-W 1.8 V to 5.5 V for M24Cxx 1.7 V to 5.5 V for M24Cxx-F Write Control input Byte and Page Write (up to 16 bytes) Random and Sequential Read modes Self-timed programming cycle Automatic address incrementing Enhanced ESD/latch-up protection More than 1 million write cycles More than 40-year data retention Packages: SO8, TSSOP8, UFDFPN8: ECOPACK2®(RoHS-compliant and Halogen-free) PDIP8: ECOPACK1®(RoHS-compliant) SO8, TSSOP8, UFDFPN8: ECOPACK2®(RoHS-compliant and Halogen-free) PDIP8: ECOPACK1®(RoHS-compliant)
