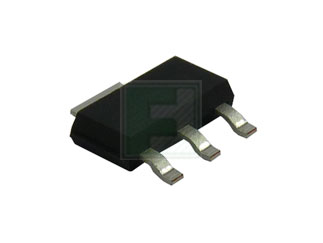

The LD1117S25CTR is a low drop fixed positive voltage regulator with an output voltage of 2.5 V and an output current up to 1300 mA. It is available in surface mount SOT-223-3 package. The 2.85 V type is ideal for SCSI-2 lines active termination.
Features:
Low dropout voltage (1 V typ.)
2.85 V device performances are suitable for SCSI-2 active termination
Output current up to 800 mA
Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
Adjustable version availability (VREF= 1.25 V)
Internal current and thermal limit
Available in ±1 % (at 25 °C) and 2 % in full temperature range
Supply voltage rejection: 75 dB (typ.)
Категория:
Линейные стабилизаторы
Артикул:
4023667
Наличие:
Нет в наличии
-
Package Style:
SOT-223 (TO-261-4, SC-73)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Производитель:
STMicroelectronics
-
Тикер производителя:
STM
-
Модель модификации:
LD1117S25CTR
-
Модель:
mini reel
-
Артикул (SKU):
4023667
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--regulators-reference--linear-regulators/ld1117s25ctr-stmicroelectronics-4023667?isMiniReel=true
-
Input Voltage-Max:
15V
-
Output Voltage Fixed:
2.5V
-
Dropout Voltage-Max:
1.2V
-
Output Current-Max:
1300mA
-
Скачать Datasheet en.CD00000544.pdf:
http://www.st.com/content/ccc/resource/technical/document/datasheet/99/3b/7d/91/91/51/4b/be/CD00000544.pdf/files/CD00000544.pdf/jcr:content/translations/en.CD00000544.pdf
