The LAN9514I-JZX is a high-performance Hi-Speed USB 2.0 hub with a 10/100 Ethernet controller. It is targeted as a high performance, low cost USB/Ethernet and USB connectivity solution.
Features:
Three downstream ports, one upstream port Three integrated downstream USB 2.0 PHYs One integrated upstream USB 2.0 PHY
Three integrated downstream USB 2.0 PHYs
One integrated upstream USB 2.0 PHY
Integrated 10/100 Ethernet MAC with full-duplex support
Integrated 10/100 Ethernet PHY with HP Auto-MDIX
Implements Reduced Power Operating Modes
Minimized BOM Cost Single 25 MHz crystal (Eliminates cost of separate crystals for USB and Ethernet) Built-in Power-On-Reset (POR) circuit (Eliminates requirement for external passive or active reset)
Single 25 MHz crystal (Eliminates cost of separate crystals for USB and Ethernet)
Built-in Power-On-Reset (POR) circuit (Eliminates requirement for external passive or active reset)
Applications:
Desktop PCs
Notebook PCs
Printers
Game Consoles
Embedded Systems
Docking Stations
Категория:
Ethernet
Артикул:
6028869
Наличие:
720
-

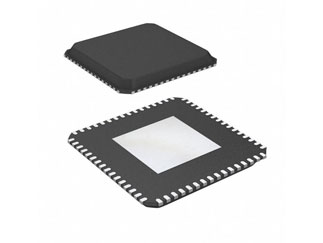

Package Style:
QFN-64
-
Mounting Method:
Surface Mount
-
ECCN:
5A991.b
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
260
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
LAN9514I-JZX
-
Модель:
tray
-
Артикул (SKU):
6028869
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--comm-products--switch/lan9514i-jzx-microchip-6028869
-
Supply Voltage-Nom:
1.8V to 3.3V
-
Interface Type:
USB
-
Скачать Datasheet 9514.pdf:
http://ww1.microchip.com/downloads/en/DeviceDoc/9514.pdf
