The L9997ND013TR is a monolithic integrated driver, in BCD technology intended to drive various loads, including DC motors. The circuit is optimized for automotive electronics enviromental conditions.
Features:
Half Bridge Output with typical RON = 0.7 ohm
Output Current Capability ±1.2 A
Operating Supply Voltage 7 V to 16.5 V
Supply overvoltage protection
Function for VVS up to 40 V
Very low quiesent Current in Standby mode < 1 mA
CMOS Compatible inputs with Hysteresis
Output Short-circuit Protection
Thermal Shutdown
Real time Diagnostic: Thermal Overload, Overvoltage
Категория:
Драйверы MOSFET и IGBT
Артикул:
3247194
Наличие:
725
-

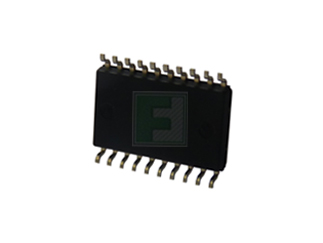

Package Style:
SOIC-20
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1000
-
Производитель:
STMicroelectronics
-
Тикер производителя:
STM
-
Модель модификации:
L9997ND013TR
-
Модель:
reel
-
Артикул (SKU):
3247194
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/l9997nd013tr-stmicroelectronics-3247194
-
Configuration:
Half Bridge
-
Peak Output Current:
1.6A
-
No of Outputs:
Dual
-
Supply Voltage-Max:
16.5V
-
Скачать Datasheet en.CD00001632.pdf:
http://www.st.com/content/ccc/resource/technical/document/datasheet/91/46/a4/3d/43/2a/4f/34/CD00001632.pdf/files/CD00001632.pdf/jcr:content/translations/en.CD00001632.pdf
