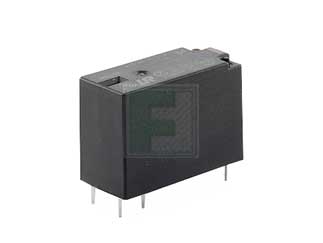

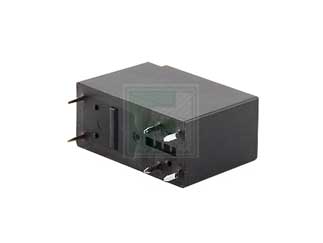

The JW2ASN-DC24V sealed power relay has a Double Pole Single Throw contact arrangement. The nominal voltage is rated to 24 Volts DC and the contact capacity is 5 A. The JW2ASN-DC24V is only available in through hole mounting.
Категория:
Силовые реле
Артикул:
1517952
Наличие:
603
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
Panasonic Industry
-
Тикер производителя:
ARM
-
Модель модификации:
JW2ASN-DC24V
-
Модель:
tray
-
Артикул (SKU):
1517952
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--relays--power-relays/jw2asn-dc24v-panasonic-1517952
-
Insulation Resistance:
100MΩ
-
Rated Power:
530mW
-
Relay Type:
Power
-
Coil Type:
Non-Latching
-
Contact Form:
DPST (2 Form A)
-
Coil Current:
22mA
-
Nominal Coil Voltage:
24V
-
Contact Current-Max:
5A
-
Switching Voltage:
250V
-
Contact Material:
Silver Nickel (AgNi)
-
Termination Style:
PC Pin
-
No of Terminals:
4
-
Скачать Datasheet mech_eng_jw.pdf:
http://www3.panasonic.biz/ac/cdn/e/control/relay/power/catalog/mech_eng_jw.pdf
