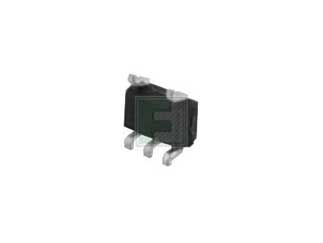

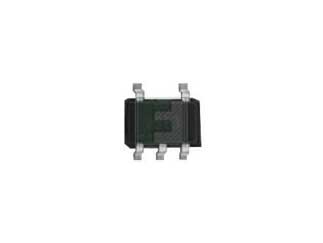

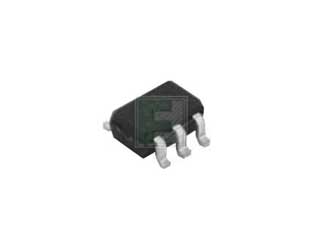

The FAN4174IS5X is a FAN4174 Series Single 3.7 MHz Bw Rail to Rail IO CMOS Amplifier - SOT-23-5 .
Product Features:
200µA Supply Current per Amplifier
3.7MHz Bandwidth
Output Swing to Within 10mV of Either Rail
Input Voltage Range Exceeds the Rails
3V/µs Slew Rate
25nV/√Hz Input Voltage Noise
Replaces KM4170 and KM4270
FAN4174 Competes with OPA340 and TLV2461; Available in SC70-5 and SOT23-5 Packages
FAN4274 Competes with OPA2340 and TLV2462; Available in MSOP-8 Package
Fully Specified at +2.7V and +5V Supplies
Applications:
AC-DC Merchant Power Supply - Video game console, flat Panel TV, DVR, STB
DSC
External AC-DC Merchant Power Supply - Wireless Communications
Mobile Handsets
Other Data Processing
Other Wireless Communications
PMP/MP3 PlayersStorage & PeripheralsTest and Measurement
Wireless LAN Card & Broadband Access
Категория:
Операционные усилители общего назначения
Артикул:
4364782
Наличие:
410
-
Supply Voltage:
2.3V to 5.25V
-
Package Style:
SOT-23-5 (SOT-25)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
6000
-
Производитель:
Onsemi
-
Тикер производителя:
FSC
-
Модель модификации:
FAN4174IS5X
-
Модель:
reel
-
Артикул (SKU):
4364782
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--amplifiers--general-purpose/fan4174is5x-onsemi-4364782
-
Operating Temp Range:
-40°C to +125°C
-
Output Type:
Rail to Rail
-
No of Channels:
1
-
Moisture Sensitivity Level:
1
-
Supply Current:
200µA
-
Amplifier Type:
Voltage Feedback
-
Slew Rate-Nom:
3V/µs
-
Input Offset Voltage-Max:
5mV
-
Gain Bandwidth Product:
3.7MHz
-
Average Bias Current-Max:
5pA
-
Common Mode Rejection Ratio:
73dB
-
Output Current:
33mA
-
Power Supply Rejection Ratio:
73dB
-
Low Noise:
25nV/√Hz
-
3dB Bandwidth-Min:
2.3MHz
-
Скачать Datasheet FAN4274-D.PDF:
https://www.onsemi.com/pub/Collateral/FAN4274-D.PDF
