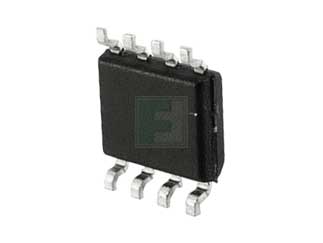

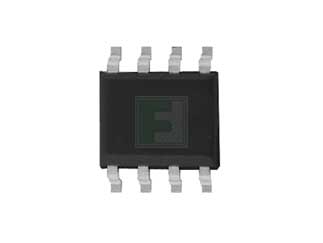

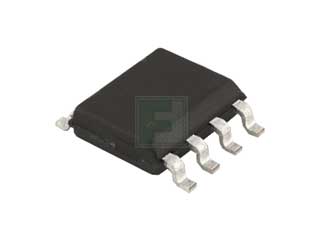

The FAN3224CMX is a part of FAN3224 series MosFet/IGBT Drivers.It has an operating temperature ranging from - 55 °C to + 150 °C and it is available in SOIC-8 Packaging.
Features:
Industry-Standard Pinouts
4.5 to 18V Operating Range
5A Peak Sink/Source at VDD = 12V
4.3A Sink / 2.8A Source at VOUT = 6V
Choice of TTL or CMOS Input Thresholds
Three Versions of Dual Independent Drivers: Dual Inverting + Enable (FAN3223) Dual Non-Inverting + Enable (FAN3224) Dual-Inputs(FAN3225)
Dual Inverting + Enable (FAN3223)
Dual Non-Inverting + Enable (FAN3224)
Dual-Inputs(FAN3225)
Internal Resistors Turn Driver Off If No Inputs
MillerDrive™ Technology
12ns / 9ns Typical Rise/Fall Times with 2.2nF Load
Typical Propagation Delay Under 20ns Matched within 1ns to the Other Channel
Double Current Capability by Paralleling Channels
8-Lead 3x3mm MLP or 8-Lead SOIC Package
Rated from –40°C to +125°C Ambient
Applications:
Switch-Mode Power Supplies
High-Efficiency MOSFET Switching
Synchronous Rectifier Circuits
DC-to-DC Converters
Motor Control
Категория:
Драйверы MOSFET и IGBT
Артикул:
3011142
Наличие:
925
-
Package Style:
SOIC-8
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
2500
-
Производитель:
Onsemi
-
Тикер производителя:
FSC
-
Модель модификации:
FAN3224CMX
-
Модель:
reel
-
Артикул (SKU):
3011142
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/fan3224cmx-onsemi-3011142
-
Configuration:
Low Side
-
Peak Output Current:
5A
-
No of Outputs:
Dual
-
Supply Voltage-Max:
18V
-
Скачать Datasheet FAN3224TU_F085-D.PDF:
https://www.onsemi.com/pub/Collateral/FAN3224TU_F085-D.PDF
