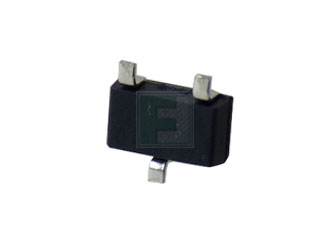

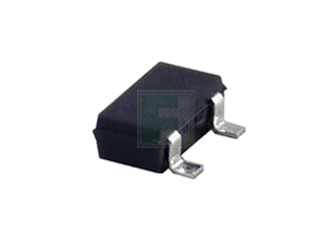

The DTC124XKAT146 is a part of DTC124 Series, NPN Digital Transistor with Built-in Resistors and Supply Voltage of 50 V and Operating Temperature range of 150 °C, available in a SC-59 Package.
The DTC124XKAT146 is a part of DTC124 Series, NPN Digital Transistor with Built-in Resistors and Supply Voltage of 50 V and Operating Temperature range of 150 °C, available in a SC-59 Package.
Features :
Only the on/off conditions need to be set for operation, making the device design easy
Built-in bias resistor enable the configuration of an inverter circuit without connecting external input resistors
The bias resistors consist of thin-flim resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects
Applications :
Inverter
Interface
Driver
Категория:
Цифровые транзисторы
Артикул:
6895494
Наличие:
561
-
Supply Voltage:
50|V
-
Package Style:
SOT-23 (SC-59,TO-236)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
ROHM
-
Тикер производителя:
RHM
-
Модель модификации:
DTC124XKAT146
-
Модель:
reel
-
Артикул (SKU):
6895494
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--transistors--digital-transistors/dtc124xkat146-rohm-6895494
-
Output Current-Max:
100mA
-
Polarity:
NPN
-
R1, R2:
22kΩ
-
Скачать Datasheet dtc124xkat146-e.pdf:
http://rohmfs.rohm.com/en/products/databook/datasheet/discrete/transistor/digital/dtc124xkat146-e.pdf
