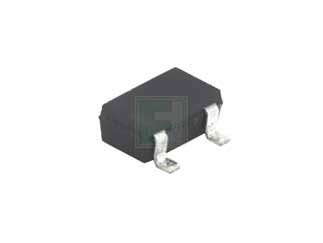

The DTA114YETL is a -100 mA, -50 V PNP Digital Transistor with Built-In Biasing Resistors to enable the configuration of an inverter circuit without connecting external input resistors.
Features:
Built-In Biasing Resistors
Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.
Only the on/off conditions need to be set for operation, making the circuit design easy.
Complementary NPN Types :DTC114Y series
Lead Free/RoHS Compliant
Applications:
Switching circuit
Inverter circuit
Interface circuit
Driver circuit
Категория:
Поставки с ограничениями
Артикул:
8062499
Наличие:
773
-
Supply Voltage:
50|V
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Размер минимального заказа, шт.:
12000
-
Производитель:
ROHM
-
Тикер производителя:
RHM
-
Модель модификации:
DTA114YETL
-
Модель:
reel
-
Артикул (SKU):
8062499
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--transistors--digital-transistors/dta114yetl-rohm-8062499
-
PCN Information:
N/A
-
Part Status:
Active
-
Output Current-Max:
100mA
-
Polarity:
PNP
-
R1, R2:
10kΩ/47kΩ
-
Скачать Datasheet dta114yetl-e.pdf:
https://fscdn.rohm.com/en/products/databook/datasheet/discrete/transistor/digital/dta114yetl-e.pdf
