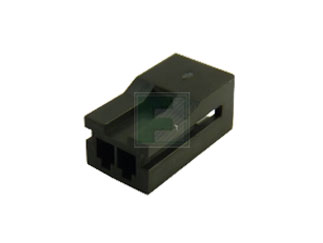

DF3-2EP-2C Hirose Electric: Разъем, 2 контакта, шаг 2мм, обжимной

The DF3-2EP-2C is a Part of DF3 Series 2 Position 2 mm Pitch In-Line Plug Crimp Socket. Features: ID Socket Low profile design with the mounting height of 6.8mm Achieves the multi-harness by the full automatic ID machine in combination with the DF11 series ID type. (DF11 series represents the 2mm pitch single-row product.Please refer to page B220 to B233.) Crimp Socket Low profile design with mounting height 7.5mm Provide the contact crimping area with the sufficient space, and secures the stable Crimping operation Receptacle The board can be connected horizontally or vertically in combination with the straight header with the right angle header For horizontal connection, the board to board size is the low profile of 6.6mm Compatibility with the in-line plug allows the receptacle to set the board side to the receptacle and the cable side to the plug in the board to cable connection Pin Header The board pre-fixed kink is treated with the post pin The style employs a scoop-proof and sturborn box type The type corresponding to SMT is avilable, using the heat-proof resin. This SMT header is equipped with the metal tab to prevent peeling in the solder joint area In-line Plug The crimping in-line plug consits of two types, one type, which has pursued after space merits, and the other employs the panel lock type, which can be fixed to the panel The in-line adapter is available to insert and in-line the ID socket from both sides Applications: Business equipment such as copy machine and printer View the Available DF3 Series of Sockets View the Available DF3 Series of Sockets
