The BSH Series is a Logic level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using TrenchMOS technology.
Features:
Suitable for high frequency applications due to fast switching characteristics
Suitable for use with all 5 V logic families
Suitable for very low gate drive sources
Applications:
"Glue-logic"; interface between logic blocks and/or periphery
Battery powered applications
DC-to-DC convertors
General purpose switching
Power management
Категория:
МОП-транзисторы
Артикул:
5692306
Наличие:
207
-

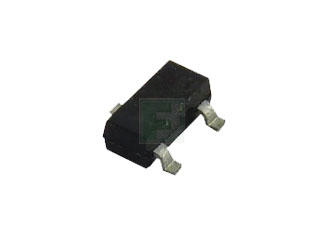

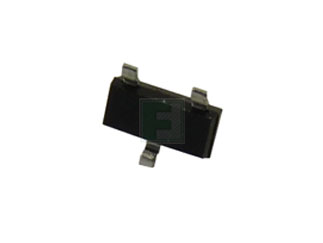

Package Style:
SOT-23 (SC-59,TO-236)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Nexperia
-
Тикер производителя:
NPR
-
Модель модификации:
BSH103,215
-
Модель:
reel
-
Артикул (SKU):
5692306
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/bsh103-215-nexperia-5692306
-
Operating Temp Range:
-55°C to +150°C
-
No of Channels:
1
-
Fet Type:
N-Ch
-
Drain-to-Source Voltage [Vdss]:
30V
-
Drain-Source On Resistance-Max:
0.4Ω
-
Rated Power Dissipation:
500|mW
-
Qg Gate Charge:
2100pC
-
Gate-Source Voltage-Max [Vgss]:
8V
-
Drain Current:
0.85A
-
Turn-on Delay Time:
2.5ns
-
Turn-off Delay Time:
20ns
-
Rise Time:
3.5ns
-
Fall Time:
7ns
-
Length:
3mm
-
Height - Max:
1mm
-
Скачать Datasheet BSH103.pdf:
https://assets.nexperia.com/documents/data-sheet/BSH103.pdf
