Address switch for industrial controls
Logic switching for computers and peripherals
Function controlling for numerous applications.

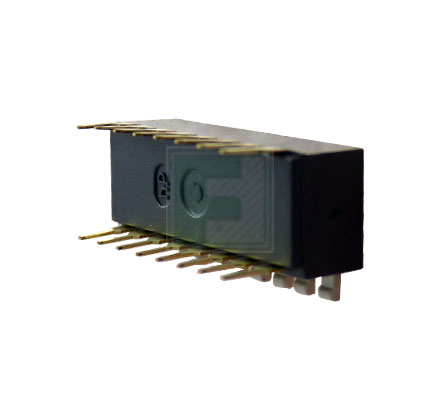

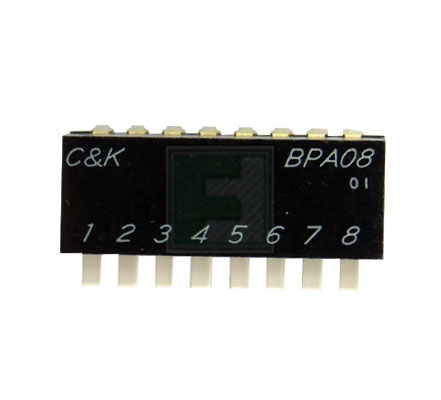

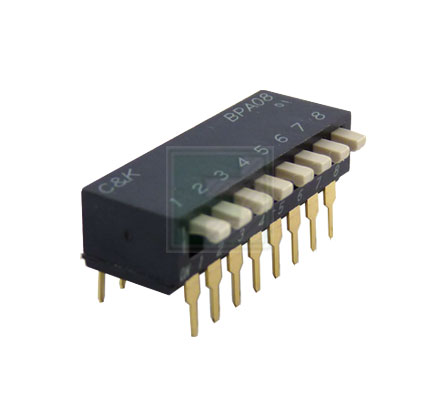

The BPA08B offers a Single Pole, Single Throw (SPST) Normally Open (NO) switch operation. This 8 position through hole side actuated DIP switch is packaged in a 20 piece tube.
Категория:
DIP-переключатели
Артикул:
1147828
Наличие:
661
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1200
-
Производитель:
C&K
-
Тикер производителя:
CK
-
Модель модификации:
BPA08B
-
Модель:
bulk
-
Артикул (SKU):
1147828
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--switches--dip-switch/bpa08b-c&k-1147828
-
Operating Temp Range:
-20°C to +85°C
-
Insulation Resistance:
100MΩ
-
Type:
Dip
-
Termination Style:
Gull Wing
-
No of Positions:
6
-
Voltage Rating:
5V
-
Actuator Style:
Standard
-
Current Rating:
100mA
-
Circuitry:
SPST
-
Contact Resistance:
50mΩ
-
Terminal Pitch:
2.54mm
-
Sealed Option:
Unsealed
-
Operating Force:
800gf
-
Скачать Datasheet bpa.pdf:
https://www.ckswitches.com/media/1332/bpa.pdf
