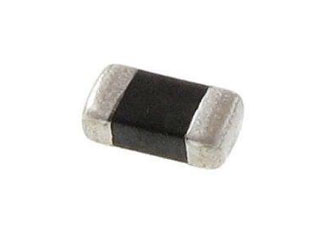

The BLM15BD601SN1D is a 600 Ohm, 200 mA, 0.65 DCR Surface Mount Ferrite Bead, designed to function nearly as a resistor at noise frequencies, which greatly reduces the possibility of resonance and leaves signal wave forms undistorted.
Features:
Effective in circuit without stable ground line
Nickel barrier structure
Excellent solder heat resistance
Sharp impedance characteristics
Категория:
Ферритовые фильтры
Артикул:
9114542
Наличие:
983
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
10000
-
Производитель:
Murata
-
Тикер производителя:
MUR
-
Модель модификации:
BLM15BD601SN1D
-
Модель:
reel
-
Артикул (SKU):
9114542
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/passives--filters--ferrite-beads/blm15bd601sn1d-murata-9114542
-
Impedance:
600Ω
-
Rated Current:
200mA
-
DC Resistance-Max:
0.65Ω
-
Case Size:
0402 (1005 Metric)
-
Operating Temp Range:
-55°C to +125°C
-
Скачать Datasheet pdfdownloadapi:
http://www.murata.com/en-global/api/pdfdownloadapi?cate=luNoiseSupprFilteChipFerriBead&partno=BLM15BD601SN1%23
