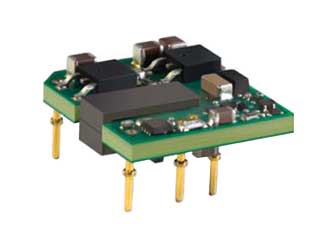

The BEI15-150-Q12P-C is a part of BEI15 series DC/DC power supply. It has an operating temperature ranging from -40°C to +85°C and is available in DIP-6 package.
Features:
Small footprint DC/DC converter, ideal for high current applications
Industry standard 0.96" x 1.1" X 0.35" open frame package and pinout
Wide range input voltages 9-36 and 18-75 Vdc
Bipolar ±5V, ±12V and ±15V outputs
Up to 15 Watts or greater total output power with overtemperature shutdown
Isolation up to 2250 VDC (basic), Q48 models
High effi ciency synchronous rectifier forward topology
Usable -40 to 85°C temperature range
Assembly and attachment for RoHS standards
Extensive self-protection shut down features
Meets UL 60950-1, CAN/CSAC22.2 No. 60950-1, IEC60950-1, EN60950-1 safety approvals
Категория:
DC/DC преобразователи
Артикул:
1010237
Наличие:
918
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
180
-
Производитель:
Murata Power Solutions
-
Тикер производителя:
MPS
-
Модель модификации:
BEI15-150-Q12P-C
-
Модель:
box
-
Артикул (SKU):
1010237
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/bei15-150-q12p-c-murata-power-solutions-1010237
-
Operating Temp Range:
-40°C to +85°C
-
Type:
Open Frame
-
Dimension:
L 27.9mm x W 24.4mm x H 8.4mm
-
Power Dissipation:
15W
-
Output Power:
15W
-
No of Outputs:
Dual
-
Output Voltage:
-15V/15V
-
Switching Frequency-Max:
330kHz
-
Isolation:
Isolated
-
Input Voltage:
24V
-
Efficiency:
84%
-
Load Regulation (%):
0.25%
-
Output Current:
±500mA
-
Ripple & Noise:
150mV
-
Скачать Datasheet bei15.pdf:
https://power.murata.com/data/power/bei15.pdf
