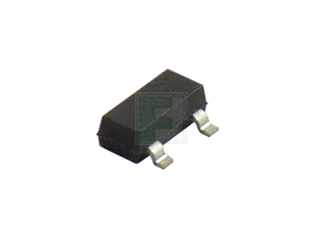

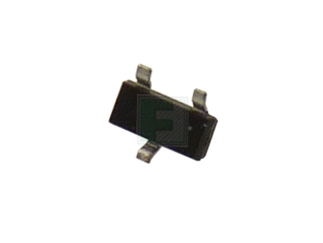

The BC848C-7-F is an NPN surface mount small signal transistor, available in surface mount 3 pin SOT-23 package.
Features:
Ideally Suited for Automatic Insertion
Complementary PNP Types Available (BC856 – BC858)
For switching and AF Amplifier Applications
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. "Green" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable
Mechanical Data:
Case: SOT23
Case material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.008 grams (Approximate
View the available BC84x series of Bipolar Transistors
View the available BC84x series of Bipolar Transistors
Категория:
Биполярные транзисторы (BJT)
Артикул:
1242635
Наличие:
720
-
Package Style:
SOT-23 (SC-59,TO-236)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Diodes Incorporated
-
Тикер производителя:
DIO
-
Модель модификации:
BC848C-7-F
-
Модель:
reel
-
Артикул (SKU):
1242635
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--transistors--bipolar-transistors/bc848c-7-f-diodes-incorporated-1242635
-
Type:
Small Signal
-
Polarity:
NPN
-
CE Voltage-Max:
30V
-
Collector Current Max:
100mA
-
Power Dissipation-Tot:
300mW
-
DC Current Gain-Min:
420
-
Скачать Datasheet ds11108.pdf:
https://www.diodes.com/assets/Datasheets/ds11108.pdf
