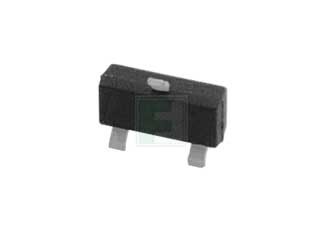

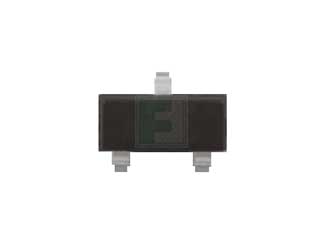

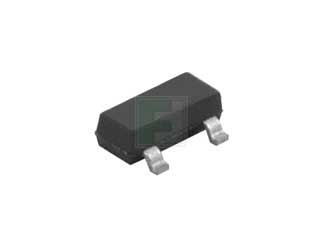

The BC846BLT1G is a NPN Silicon General Purpose Transistor, available in a SOT-23 package.
Features:
Moisture Sensitivity Level: 1
ESD Rating − Human Body Model: >4000 V
ESD Rating − Machine Model: >400 V
AEC−Q101 Qualified and PPAP Capable
S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications:
ESD Protection
Polarity Reversal Protection
Data Line Protection
Inductive Load Protection
Steering Logic
Категория:
Биполярные транзисторы (BJT)
Артикул:
4072660
Наличие:
237
-
Package Style:
SOT-23 (SC-59,TO-236)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
BC846BLT1G
-
Модель:
reel
-
Артикул (SKU):
4072660
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--transistors--bipolar-transistors/bc846blt1g-onsemi-4072660
-
Operating Temp Range:
-55°C to +150°C
-
Moisture Sensitivity Level:
1
-
Type:
General Purpose
-
Configuration:
Single
-
Polarity:
NPN
-
CE Voltage-Max:
65V
-
Collector Current Max:
100mA
-
Power Dissipation-Tot:
300mW
-
DC Current Gain-Min:
150
-
Collector - Base Voltage:
80V
-
Collector - Emitter Saturation Voltage:
0.6V
-
Emitter - Base Voltage:
6V
-
Frequency - Transition:
100MHz
-
Noise Figure:
10dB
-
Collector - Current Cutoff:
5µA
-
Скачать Datasheet BC846ALT1-D.PDF:
http://www.onsemi.com/pub/Collateral/BC846ALT1-D.PDF
