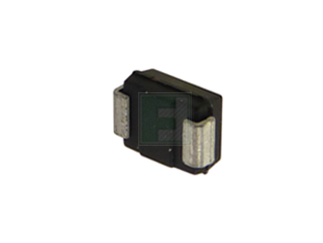

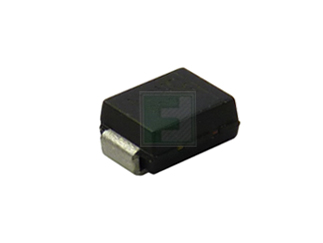

The B260-13-F is a part of B260 Series High Efficiency 60 V 2 A Surface Mount Schottky Barrier Rectifier available in a SMB package. It has an Operating and Storage Temper-ature Ranging between -65 °C to +150 °C .
Product Features:
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 50A Peak
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application
High Temperature Soldering: 260°C/10 Second at Terminal
Operating and Storage Temperature Range is -65 to +150 °C
Typical Thermal Resistance, Junction to Lead is 25 °C/W
Peak Reverse DC Blocking Voltage is 60 V
Average Rectified Output Current is 2 A
Категория:
Диоды Шоттки
Артикул:
8181763
Наличие:
214
-
Package Style:
SMB (DO-214AA)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Diodes Incorporated
-
Тикер производителя:
DIO
-
Модель модификации:
B260-13-F
-
Модель:
reel
-
Артикул (SKU):
8181763
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--scottky-rectifiers/b260-13-f-diodes-incorporated-8181763
-
Forward Voltage:
0.7V
-
Reverse Current-Max:
20mA
-
Reverse Voltage-Max [Vrrm]:
60V
-
Peak Current-Max:
50A
-
Average Rectified Current-Max:
2A
-
Скачать Datasheet ds13004.pdf:
https://www.diodes.com/assets/Datasheets/ds13004.pdf
