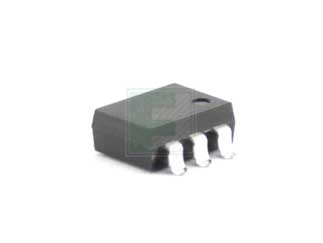

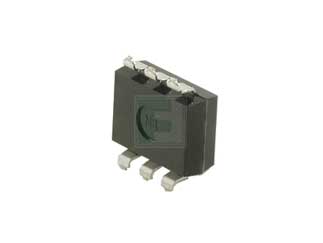

The AQV212A is a part of AQV21 series surface mount terminal AC/DC dual use type solid state relay. It has a storage temperature ranging from -40°C to +100°C and its available in DIP-6.
Features:
Controls low-level analog signals
Controls various types of loads such as relays, motors, lamps and solenoids
Optical coupling for extremely high isolation
Eliminates the need for a counter electromotive force protection diode in the drive circuits on the input side
Stable on-resistance
Low-level off state leakage current of max. 1 µA
Reinforced insulation type of I/O voltage 5,000V also available
Load current: 550 mA
Load voltage: 60 V
Applications:
High-speed inspection machines
Telephone equipment
Data communication equipment
Computers
Категория:
Твердотельные реле (SSR)
Артикул:
5823182
Наличие:
178
-
Package Style:
DIP-6
-
ECCN:
EAR99
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
50
-
Производитель:
Panasonic Industry
-
Тикер производителя:
ARM
-
Модель модификации:
AQV212A
-
Модель:
tube
-
Артикул (SKU):
5823182
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--relays--solid-state-relays/aqv212a-panasonic-industry-5823182
-
Operating Temp Range:
-40°C to +85°C
-
No of Channels:
1
-
Capacitance:
150pF
-
Isolation Voltage-RMS:
1500V
-
Contact Form:
SPST (1 Form A)
-
Contact Current-Max:
550mA
-
Turn-on Delay Time:
0.65ms
-
Turn-off Delay Time:
0.08ms
-
Output Voltage:
0V to 60V
-
On-state Resistance-Max:
2.5Ω
-
Скачать Datasheet semi_eng_gu1a_aqv21.pdf:
http://www3.panasonic.biz/ac/e_download/control/relay/photomos/catalog/semi_eng_gu1a_aqv21.pdf?f_cd=301062&via=ok
