The 93XX66A/B/C devices are 4 Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93AA66C, 93LC66C or 93C66C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93XX66A devices are available, while the 93XX66B devices provide dedicated 16-bit communication.
Features:
Low-Power CMOS Technology
ORG Pin to Select Word Size for ‘66C’ Version
512 x 8-bit Organization ‘A’ Devices (no ORG)
256 x 16-bit organization ‘B’ Devices (no ORG)
Self-tImed Erase/Write Cycles (including Auto-Erase)
Automatic Erase All (ERAL) Before Write All (WRAL)
Power-On/Off Data Protection Circuitry
Industry Standard 3-Wire Serial I/O
Device Status Signal (Ready/Busy)
Sequential Read Function
1,000,000 Erase/Write Cycles
Data Retention > 200 Years
Temperature ranges supported: Industrial (I) -40ºC to +125ºC
Industrial (I) -40ºC to +125ºC
Категория:
EEPROM с интерфейсом Micro-Wire
Артикул:
1340389
Наличие:
258
-
Package Style:

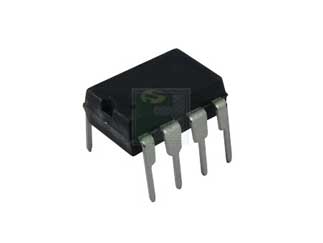

DIP-8
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
93LC66B-I/P
-
Модель:
tube
-
Артикул (SKU):
1340389
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--memory--RAM--eeprom--micro-wire-interface-protocol/93lc66b-i-p-microchip-1340389
-
Clock Frequency-Max:
2MHz
-
Memory Density:
4kb
-
Memory Organization:
256 x 16
-
Supply Voltage-Nom:
2.5V to 5.5V
-
Write Cycle Time-Max (tWC):
6ms
-
Скачать Datasheet 21795E.pdf:
http://ww1.microchip.com/downloads/en/DeviceDoc/21795E.pdf
