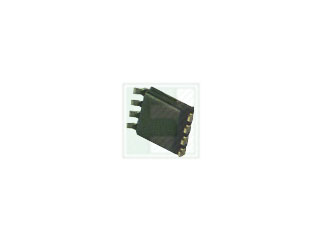

The 74LVC2G86DC,125 is a part of 74LVC2 series logic gate. It has an ambient temperature ranging from - 40 °C to + 125°C and is available in VSSOP-8 package.
Features:
Wide supply voltage range from 1.65 V to 5.5 V
5 V tolerant inputs for interfacing with 5 V logic
High noise immunity
Complies with JEDEC standard: JESD8-7 (1.65 V to 1.95 V) JESD8-5 (2.3 V to 2.7 V) JESD8B/JESD36 (2.7 V to 3.6 V)
JESD8-7 (1.65 V to 1.95 V)
JESD8-5 (2.3 V to 2.7 V)
JESD8B/JESD36 (2.7 V to 3.6 V)
ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
±24 mA output drive (VCC = 3.0 V)
CMOS low-power consumption
Latch-up performance exceeds 250 mA
Direct interface with TTL levels
Inputs accept voltages up to 5 V
Multiple package options
Specified from −40 °C to +85 °C and −40 °C to +125 °C
Категория:
Двойные логические элементы
Артикул:
7062712
Наличие:
961
-
Operating Temperature:
-40°C to +125°C
-
Package Style:
VSSOP-8
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Nexperia
-
Тикер производителя:
NPR
-
Модель модификации:
74LVC2G86DC,125
-
Модель:
reel
-
Артикул (SKU):
7062712
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--gates--dual-gate/74lvc2g86dc-125-nexperia-7062712
-
Capacitance:
2.5pF
-
Supply Voltage-Nom:
1.65V to 5.5V
-
Moisture Sensitivity Level:
1
-
Power Dissipation:
0.3W
-
Logic Circuit:
Exclusive OR GATE
-
No of Pins:
8
-
No of Functions / Channels:
2
-
Propagation Delay:
1.9ns
-
No of Inputs:
4
-
No of Outputs:
Dual
-
High Level Output Current:
-32mA
-
Low Level Output Current:
32mA
-
Quiescent Current:
0.1µA
-
Скачать Datasheet 74LVC2G86.pdf:
https://assets.nexperia.com/documents/data_sheet/74LVC2G86.pdf
