The 74LVC244APW is an octal non-inverting buffer/line driver with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state.
Features:
5 V tolerant inputs/outputs for interfacing with 5 V logic
Wide supply voltage range from 1.2 V to 3.6 V
CMOS low-power consumption
Direct interface with TTL levels
Inputs accept voltages up to 5.5 V
High-impedance when VCC = 0 V
Bus hold on all data inputs (74LVCH244A only)
Complies with JEDEC standard no. 8-1A
ESD protection: HBM JESD22-A114E exceeds 2000 V MM JESD22-A115-A exceeds 200 V
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Specified from -40 Cel to +85 Cel and -40 Cel to +125 Cel
Категория:
Серия 74ALVC
Артикул:
5261185
Наличие:
177
-

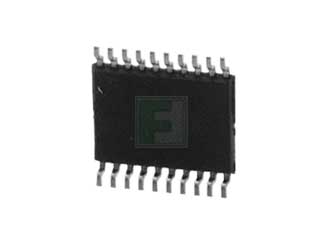

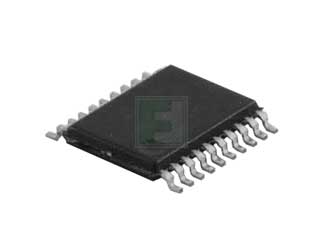

Package Style:
TSSOP-20
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
10000
-
Производитель:
Nexperia
-
Тикер производителя:
NPR
-
Модель модификации:
74LVC244APW,118
-
Модель:
reel
-
Артикул (SKU):
5261185
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--74-series--a-lvc/74lvc244apw-118-nexperia-5261185
-
Supply Voltage-Nom:
2.7|3.6V
-
Logic Circuit:
Buffer/Line Driver
-
Family:
A/LVC/E/H/U
-
No of Functions / Channels:
2
-
Output Characteristics:
3-ST
-
Скачать Datasheet 74LVC_LVCH244A.pdf:
http://assets.nexperia.com/documents/data-sheet/74LVC_LVCH244A.pdf
