The 74LVC1G19GW is a 1-of-2 decoder/demultiplexer with a common output enable. This device buffers the data on input A and passes it to the outputs 1Y (true) and 2Y (complement) when the enable (E) input signal is LOW.
Features:
Wide supply voltage range from 1.65 V to 5.5 V
5 V tolerant inputs for interfacing with 5 V logic
High noise immunity
Complies with JEDEC standard:
JESD8-7 (1.65 V to 1.95 V)
JESD8-5 (2.3 V to 2.7 V)
JESD8B/JESD36 (2.7 V to 3.6 V)
ESD protection:
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
+-24 mA output drive (VCC = 3.0 V)
CMOS low power consumption
Latch-up performance exceeds 250 mA
Direct interface with TTL levels
Multiple package options
Specified from -40 Cel to +85 Cel and -40 Cel to +125 Cel
Категория:
Серия 74ALVC
Артикул:
8612608
Наличие:
Нет в наличии
-
Operating Temperature:
-40°C to +125°C
-
Package Style:

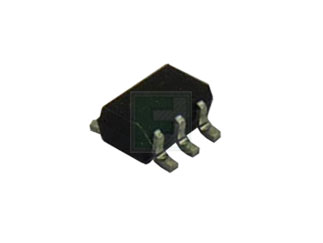

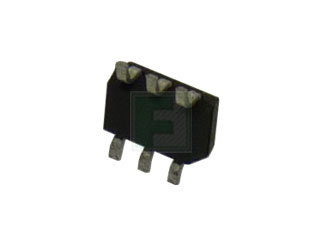

SOT-363 (SC-70-6, SC-88)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Nexperia
-
Тикер производителя:
NPR
-
Модель модификации:
74LVC1G19GW,125
-
Модель:
reel
-
Артикул (SKU):
8612608
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--74-series--a-lvc/74lvc1g19gw-125-nexperia-8612608
-
Capacitance:
2.5pF
-
Supply Voltage-Nom:
1.65V to 5.5V
-
Moisture Sensitivity Level:
1
-
Power Dissipation:
0.25W
-
Logic Circuit:
Decoder/Demux
-
Family:
A/LVC/E/H/U
-
No of Pins:
6
-
No of Functions / Channels:
1
-
Propagation Delay:
1.8ns
-
No of Inputs:
1
-
No of Outputs:
Dual
-
High Level Output Current:
-32mA
-
Low Level Output Current:
32mA
-
Quiescent Current:
0.1µA
-
Скачать Datasheet 74LVC1G19.pdf:
http://assets.nexperia.com/documents/data_sheet/74LVC1G19.pdf
