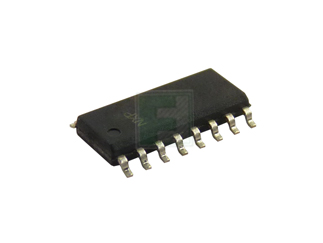

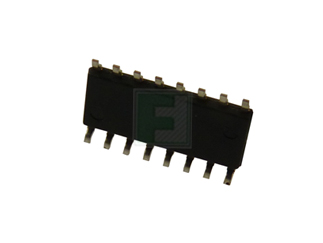

The 74HC165D,653 is a high-speed Si-gate CMOS 8-bit parallel-in/serial-out shift register,are pin compatible with low power Schottky TTL (LSTTL).Its core supply voltage ranges from 2.0 V to 6.0 V.
Features:
Asynchronous 8-bit parallel load
Synchronous serial input
Complies with JEDEC standard no. 7 A
ESD protection: HBM JESD22-A114E exceeds 2000 V MM JESD22-A115-A exceeds 200 V
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Specified from -40°C to +85°C and -40°C to +125°C.
Applications:
Industrial
Automotive
Parallel-to-serial data conversion
Категория:
A/HC/T (серия 74)
Артикул:
3983285
Наличие:
994
-
Operating Temperature:
-40°C to +125°C
-
Package Style:
SOIC-16
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
10000
-
Производитель:
Nexperia
-
Тикер производителя:
NPR
-
Модель модификации:
74HC165D,653
-
Модель:
reel
-
Артикул (SKU):
3983285
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--74-series--a-hc-t/74hc165d-653-nexperia-3983285
-
Capacitance:
3.5pF
-
Supply Voltage-Nom:
2V to 6V
-
Moisture Sensitivity Level:
1
-
Power Dissipation:
0.5W
-
Logic Circuit:
Register
-
Family:
A/HC/T/U
-
No of Pins:
16
-
No of Functions / Channels:
1
-
Propagation Delay:
11ns
-
No of Inputs:
9
-
No of Outputs:
Single
-
High Level Output Current:
-5.2mA
-
Low Level Output Current:
5.2mA
-
Quiescent Current:
8µA
-
Output Characteristics:
Complementary
-
Скачать Datasheet 74HC_HCT165.pdf:
https://assets.nexperia.com/documents/data_sheet/74HC_HCT165.pdf
