The 74AUP1G14GM,115 is a Single Inverting Schmitt trigger with very low static and dynamic power consumption across the entire Vcc range from 0.8 V to 3.6 V.
Features and Benefits:
Wide supply voltage range from 0.8 V to 3.6 V
High noise immunity
ESD protection: HBM JESD22-A114F Class 3A exceeds 5000 V MM JESD22-A115-A exceeds 200 V CDM JESD22-C101E exceeds 1000 V
HBM JESD22-A114F Class 3A exceeds 5000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Low static power consumption; ICC = 0.9 µA (maximum)
Latch-up performance exceeds 100 mA per JESD 78 Class II
Inputs accept voltages up to 3.6 V
Low noise overshoot and undershoot < 10 % of VCC
IOFF circuitry provides partial Power-down mode operation
Multiple package options
Specified from -40 °C to +85 °C and -40 °C to +125 °C
Applications:
Wave and pulse shaper
Astable multivibrator
Monostable multivibrator
Категория:
A/HC/T (серия 74)
Артикул:
4667275
Наличие:
673
-
Package Style:

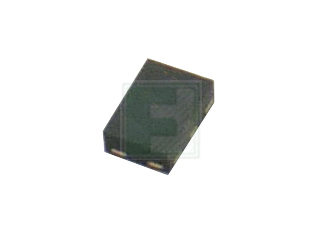

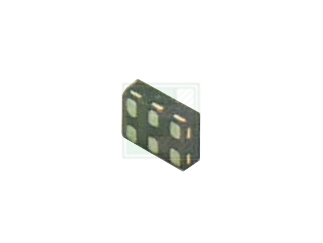

XSON-6
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
10000
-
Производитель:
Nexperia
-
Тикер производителя:
NPR
-
Модель модификации:
74AUP1G14GM,115
-
Модель:
reel
-
Артикул (SKU):
4667275
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--74-series--a-hc-t/74aup1g14gm-115-nexperia-4667275
-
Supply Voltage-Nom:
0.8V to 3.6V
-
Logic Circuit:
Inverter
-
No of Functions / Channels:
1
-
Скачать Datasheet 74AUP1G14.pdf:
https://assets.nexperia.com/documents/data-sheet/74AUP1G14.pdf
