The74AHCT32PW,118 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL) and provides the 2-input OR function.It is specified in compliance with JEDEC standard No. 7-A
Features:
Balanced propagation delays
All inputs have Schmitt-trigger actions
Inputs accept voltages higher than VCC
Input levels:
For 74AHC32: CMOS level
For 74AHCT32: TTL level
ESD protection: HBM EIA/JESD22-A114E exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V CDM EIA/JESD22-C101C exceeds 1000 V
HBM EIA/JESD22-A114E exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
CDM EIA/JESD22-C101C exceeds 1000 V
Multiple package options
Specified from -40 Cel to +85 Cel and from -40 Cel to +125 Cel
Категория:
A/HC/T (серия 74)
Артикул:
8009647
Наличие:
338
-

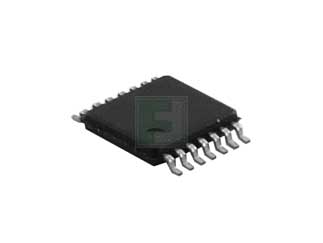

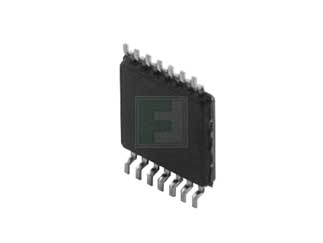

Package Style:
TSSOP-14
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
10000
-
Производитель:
Nexperia
-
Тикер производителя:
NPR
-
Модель модификации:
74AHCT32PW,118
-
Модель:
reel
-
Артикул (SKU):
8009647
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--74-series--a-hc-t/74ahct32pw-118-nexperia-8009647
-
Скачать Datasheet 74AHC_AHCT32.pdf:
http://assets.nexperia.com/documents/data-sheet/74AHC_AHCT32.pdf
