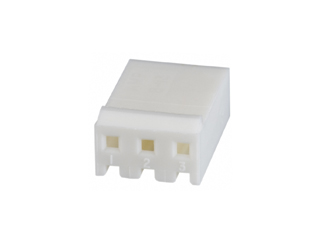

The 640250-3 is a 3 Position Crimp Locking Ramp Free Hanging Receptacle Connector. MTA-100 connectors accept discrete and ribbon cable wire sizes ranging from 22-28 AWG [0.4-0.08 mm²] with maximum insulation outside diameter of .060[ 1.52] for terminating single wire and .050[1.27] for mass termination of wires.
Features:
Connector Type = Housing
Product Line = SL-156
Termination Method to Wire/Cable = Crimp
Mating Connector Lock = With
Four Points of Contact = Without
Shrouded = No
Mounting Ears = Without
Wire Insulation Diameter (mm [in]) = 2.79 [0.110]
Mating Connector Lock Type = Locking Ramp
Number of Positions = 3
Centerline (mm [in]) = 3.96 [0.156]
Cable Exit Angle = 180°
Mating Products:
640383-3
640384-3
640385-3
640388-3
Категория:
Гребенки и корпуса для проводов
Артикул:
4268306
Наличие:
567
-
ECCN:
EAR99
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
32000
-
Производитель:
TE Connectivity
-
Тикер производителя:
TYC
-
Модель модификации:
640250-3
-
Модель:
bag
-
Артикул (SKU):
4268306
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/640250-3-te-connectivity-4268306
-
Operating Temp Range:
-55°C to +105°C
-
Type:
Receptacle
-
Color:
Natural
-
Скачать Datasheet DDEController:
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=640250&DocType=Customer+Drawing&DocLang=English
-
No of Positions:
3
-
Voltage Rating:
250V
-
Current Rating:
6.5A
-
Style/Orientation:
Free Hanging Receptacle
-
Termination:
Crimp
-
Material:
Nylon
-
Pitch:
3.96 mm
-
Gender:
Female
-
No of Rows:
1
-
Mating Type:
Locking Ramp
-
Contact Termination:
Female/Socket Crimp
