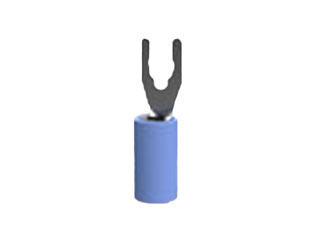

The 52935 is a PIDG 16-14 AWG Straight Closed Barrel Short Spring Spade Tongue Terminal.
Features:
Terminal Shape = Spring Spade, Short
Receptacle Style = Straight
Body Style = PIDG
Barrel Type = Closed Barrel
Wire/Cable Type = Regular Wire
Insulation = Yes
Insulation Support = Insulation Support
Insulation Diameter (mm [in]) = 2.92-4.32 [.115-.170]
Stud Diameter (mm [in]) = 3.56 [0.140]
Stud Size = 6 [M3.5]
Shape = SPADE-028
Heavy Duty = No
Material = Phosphor Bronze
Finish = Tin
Voltage (VAC) = 300
Wire/Cable Size (CMA) = 2,050 – 5,180
Insulation Sleeve Material = Copper
Категория:
Штыревые контакты
Артикул:
1764620
Наличие:
313
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
TE Connectivity
-
Тикер производителя:
TYC
-
Модель модификации:
52935
-
Модель:
box
-
Артикул (SKU):
1764620
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/interconnect--pin-and-socket-connectors--crimp-terminals/52935-te-connectivity-1764620
-
Type:
Spade
-
Wire Gauge:
AWG 14-16
-
Color:
Blue
-
Скачать Datasheet DDEController:
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=52935&DocType=Customer+Drawing&DocLang=English
-
Contact Material:
Phosphor Bronze
-
Voltage Rating:
300V
-
Contact Plating:
Tin
-
Style:
Non-Mating End Insulated
-
Gender:
Female
-
Size:
Stud #6
