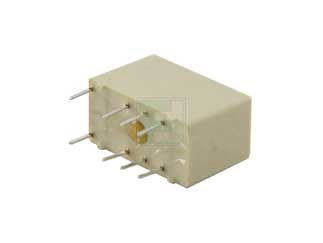

Реле TYC 5-1393788-8, 24V, DPDT, 2A, SMD, J-Legs

The 5-1393788-8 is a P2 Series 2 A DPDT 24 VDC Non-Latching J-Legs Surface Mount Signal Relay. Features: Standard telecom relay (ringing and test access) Slim line 15 x 7.5 mm, 0.590 x 0.295 inch Switching current 5 A 2 changeover contacts (2 form C / DPDT) Bifurcated contacts Immersion cleanable High sensitivity results in low nominal power consumption 140 mW for non-latching and latching with 2 coils 70 mW for latching with 1 coil For single coil version: Surge voltage resistance between contact and coil for single coil version: 2.5 kV (2 / 10 µs) meets the Telcordia Requirement GR-1089 1.5 kV (10 / 160 µs) meets FCC Part 68 Applications: Communications equipment linecard application (ringing and test access) PABX Voice over IP Office equipment Measurement and control equipment Automotive equipment as CAN bus, keyless entry, speaker switch Medical equipment Consumer electronics Set Top Boxes, HiFi
