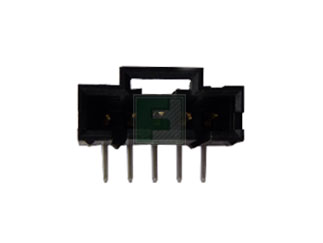

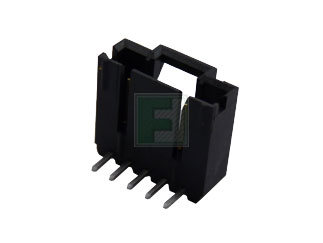

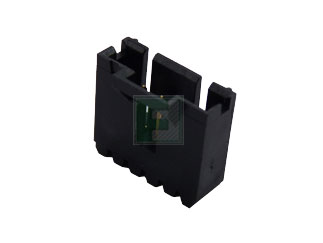

The 5-103635-4 is a AMPMODU 5 Position Through-Hole Single Row Right Angle .100 Inch Header .
Product Specification:
Connector
Header
Plug Style
AMPMODU Product Line
Pin Contact type
Centreline is 2.54 mm [0.100 in]
Number of Positions are 5
Number of Rows are 1
IDC Termination method
View the 5-103635 series of Header
View the 5-103635 series of Header
Категория:
Гребенки
Артикул:
9858358
Наличие:
891
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
TE Connectivity
-
Тикер производителя:
TYC
-
Модель модификации:
5-103635-4
-
Модель:
tube
-
Артикул (SKU):
9858358
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/5-103635-4-te-connectivity-9858358
-
Operating Temp Range:
-65°C to +105°C
-
Insulation Resistance:
5000MΩ
-
Type:
Header
-
Color:
Black
-
Скачать Datasheet DDEController:
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=103635&DocType=Customer+Drawing&DocLang=English
-
No of Positions:
5
-
Current Rating:
3A
-
Style/Orientation:
Right Angle Header/Plug
-
Termination:
IDC
-
Material:
Thermoplastic
-
Contact Plating:
Gold
-
Pitch:
2.54 mm
-
Gender:
Male
-
No of Rows:
1
-
Mating Type:
Locking Lance
