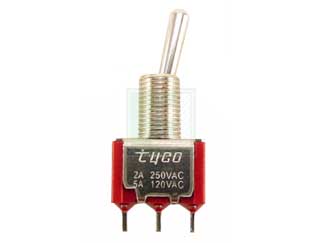

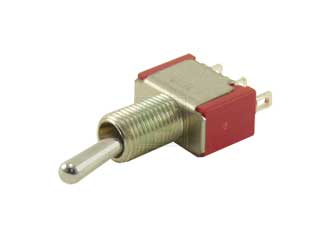

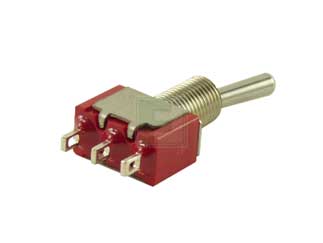

The 4-1825136-9 is a A Series SPDT (On On) 5 A @ 125 VAC 10.40 mm Round Actuator Panel Mount Toggle Switch.
Product Features:
Series =A
Configuration (Pole-Throw) = Single Pole - Double Throw
Termination Type = Wire Lugs
Current Rating (A) = 5
Seal Type = Terminal Seal (epoxy)
Mount Style = Solder
Contact Plating = Silver
Toggle Style = Baton Long
Toggle Length (mm) = 10.40
Process Sealed = No
Bushing Style = Threaded
Bushing Type = 1/4-40
Operating Function =On On
Applications:
Industrial equipment
Audio-visual equipment
Outdoor concert and lighting equipment
Medical
Instrumentation
Communication equipment
Категория:
Тумблеры
Артикул:
7449408
Наличие:
160
-
Operating Temperature:
-30°C to +85°C
-
Mounting Method:
Panel Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
TE Connectivity
-
Тикер производителя:
TYC
-
Модель модификации:
4-1825136-9
-
Модель:
box
-
Артикул (SKU):
7449408
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--switches--toggle/4-1825136-9-te-connectivity-7449408
-
Insulation Resistance:
1000MΩ
-
Dimension:
L 12.7mm x W 6.86mm x H 32.16mm
-
Скачать Datasheet DDEController:
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1308111-1_SWITCHES_CORE_PROGRAM_CATALOG&DocType=CS&DocLang=English
-
Contact Material:
Gold Over Silver
-
Termination Style:
Wire Lug
-
Voltage Rating:
28V
-
Current Rating:
5A
-
Dielectric Withstanding Voltage:
1000V
-
Switch Operation:
On-None-On
-
Circuitry:
SPDT
-
Rated Voltage (VAC):
125VAC
-
Actuator Type:
Toggle
-
Bushing Style:
Threaded
-
Contact Plating:
Silver
