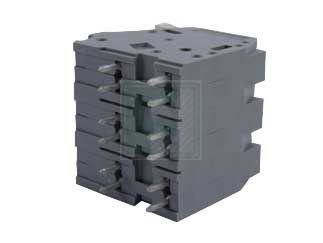

The 2716-103 is a part of PCB terminal strip 4 solder pins/pole 3 pole pin spacing 10 mm / 0.394 in with levers without jumper slot .
Product Features:
Grey color
No of Connection points are 3
No of Potentials 3
Measured shock voltage 4 kV
Current intensity EN 76 A
Measured shock voltage 4 kV
Current intensity EN 76 A
Overvoltage category EN II II
Pollution degree 2
Measured voltage EN 630 V
Cross section [mm²] 1.5 - 16 mm²
Wiring method solid
Cross section [mm²] 1.5 - 16 mm²
Wiring method fine-stranded
Strip length from 12 mm
Strip length to 13 mm
Temperature stability -60 °C to +105 °C
Flammability category, based on UL 94 0V
Clamping spring material Nickel-chromium spring steel (CrNi)
Contact material Electrolytic copper (Ecu)
Категория:
Разъемные клеммные блоки
Артикул:
2012259
Наличие:
много
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
WAGO
-
Тикер производителя:
WGO
-
Модель модификации:
2716-103
-
Модель:
bag
-
Артикул (SKU):
2012259
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/interconnect--terminal-blocks--euro-style/2716-103-wago-2012259
-
Operating Temp Range:
-60°C to +105°C
-
Type:
Euro Style
-
Wire Gauge:
AWG 16-6
-
Color:
Grey
-
Voltage Rating:
630V
-
Current Rating:
76A
-
Termination:
Cage Clamp
-
Contact Plating:
Tin
-
Pitch:
10 mm
-
Style:
Eurostyle
-
Скачать Datasheet en:
https://wago.priintcloud.com/datasheets/2716-103/en
-
No of Poles:
3
-
No of Rows:
1
