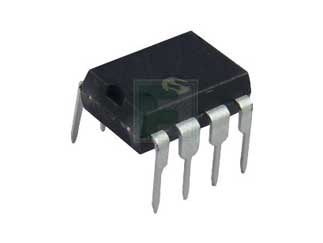

The 24LC00/P is a 128-bit EEPROM , organized as 16 x 8-bit memory with a 2-wire serial interface, available in PDIP-8 package.
Features:
Low-Power CMOS Technology: 500 µA typical active current 250 nA typical standby current
500 µA typical active current
250 nA typical standby current
2-Wire Serial Interface, I2C™ Compatible
Packages with 3 Address Pins are Cascadable upto 8 Devices
100 kHz (1.8 V) and 400 kHz (5 V) Compatibility
Self-timed Write Cycle (including auto-erase)
4 ms maximum byte write cycle time
1,000,000 erase/write cycles
ESD protection> 4 kV
Data retention> 200 years
Pb-free finish available
Available for extended temperature ranges: Commercial (C): 0°C to +70°C Industrial (I): -40°C to +85°C Automotive (E): -40°C to+125°C
Commercial (C): 0°C to +70°C
Industrial (I): -40°C to +85°C
Automotive (E): -40°C to+125°C
Категория:
EEPROM с интерфейсом I2C
Артикул:
4633574
Наличие:
586
-
Package Style:
PDIP-8
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
24LC00/P
-
Модель:
tube
-
Артикул (SKU):
4633574
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--memory--RAM--eeprom--i2c-interface-protocol/24lc00-p-microchip-4633574
-
Operating Temp Range:
0°C to 70°C
-
Clock Frequency-Max:
400kHz
-
Memory Density:
128b
-
Memory Organization:
16 x 8
-
Supply Voltage-Nom:
2.5V to 5.5V
-
No of Terminals:
8
-
Access Time-Max:
3500ns
-
Interface Type:
I2C
-
Скачать Datasheet filehandler.aspx:
http://www.microchip.com/mymicrochip/filehandler.aspx?ddocname=en011773
-
Write Cycle Time-Max (tWC):
4ms
-
Data Retention:
200 yr
