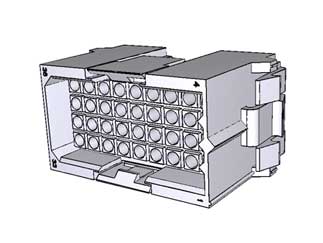

The 207020-1 is a 36 Position Solder Latch Lock Free Hanging Receptacle Connector this AMP Metrimate connectors are true metric specification connectors designed for panel, free-hanging or pc board application.
Product Features:
Product Type = Housing
Connector Type = Housing
Gender = Receptacle
Keyed = No
Mount = Free Hanging, Panel
Mounting Ears = Without
Mating Connector Lock = With
PCB Mount Retention = Without
Mating Connector Lock Type = Locking Tab
Voltage (VAC) = 600
Connector Configuration = Rectangular
Number of Positions = 36
Coaxial Socket = Without
Centerline (mm [in]) = 5.00 [0.197]
Jackscrew = Without
8/32 Insert = No
Mating Alignment Type = Polarizing Tab
Housing Material = Thermoplastic - GF
Housing Color = Red
UL Flammability Rating = UL 94V-0
Категория:
Гребенки и корпуса для проводов
Артикул:
9434036
Наличие:
894
-
Mounting Method:
Panel Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
TE Connectivity
-
Тикер производителя:
TYC
-
Модель модификации:
207020-1
-
Модель:
bag
-
Артикул (SKU):
9434036
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/207020-1-te-connectivity-9434036
-
Operating Temp Range:
-55°C to +130°C
-
Insulation Resistance:
100MΩ
-
Type:
Receptacle
-
Color:
Red
-
Скачать Datasheet DDEController:
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=207020&DocType=Customer+Drawing&DocLang=English
-
Contact Material:
Brass
-
No of Positions:
36
-
Voltage Rating:
600V
-
Current Rating:
7.5A
-
Style/Orientation:
Free Hanging Receptacle
-
Termination:
Crimp
-
Material:
Thermoplastic
-
Contact Plating:
Tin
-
Pitch:
5 mm
-
Gender:
Male
-
No of Rows:
4
-
Mating Type:
Latch Lock
-
Contact Termination:
Female/Socket Crimp
