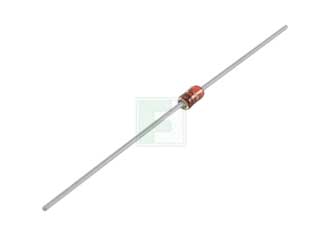

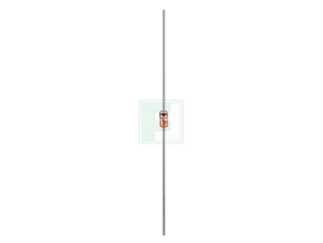

The 1N5222B is a part of 1N522x series Zener Diodes having power dissipation of 500 mW, nominal voltage 2.5 V, reverse current of 100 µA, operating temperature as -65 °C to +200 °C and DO-35 package style.
Notes:
Zener Voltage (VZ), the zener voltage is measured with the device junction in the thermal equilibrium at the lead temperature (TL) at 30°C ± 1°C and 3/8” lead length
The Non-recurrent square wave will operate at PW = 8.3ms, TA = 50 °C
Категория:
Стабилитроны
Артикул:
3011133
Наличие:
834
-
Package Style:
DO-35 (SOD-27)
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
50000
-
Производитель:
Onsemi
-
Тикер производителя:
FSC
-
Модель модификации:
1N5222B
-
Модель:
box
-
Артикул (SKU):
3011133
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--zener/1n5222b-onsemi-3011133
-
Forward Voltage:
1.2V
-
Forward (Drive) Current:
200mA
-
Reverse Current-Max:
100µA
-
Power Dissipation:
500mW
-
Working Voltage-Nom:
2.4V
-
Скачать Datasheet 1N5221B-D.PDF:
https://www.onsemi.com/pub/Collateral/1N5221B-D.PDF
