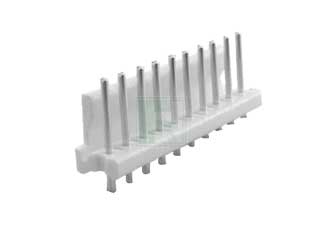

The 1-640388-0 is a MTA-156 10 Position Single Row Through-Hole Straight Wire to Board Header
Product Features:
Connector Type = Header
Product Line = MTA-156
PCB Mounting Orientation = Vertical
PCB Mount Retention = Without
Mating Connector Lock = With
Four Points of Contact = Without
Shrouded = No Mounting Ears = Without
Mating Connector Lock Type = Friction Lock
Post Size (mm [in]) = 1.14 [.045]Number of Positions = 10
Centerline (mm [in]) = 3.96 [0.156]
Narrow = No
Post Number(s) Omitted = None
Solder Tail Contact Material = Copper Alloy
Contact Type = Pin
Contact Shape = Round
Contact Plating, Mating Area, Material = Tin
Contact Base Material = Copper Alloy
Connector Style = Plug
Housing Color = White
Mating Alignment = Without
UL Flammability Rating = UL 94V-0
Housing Material = Polyester
View the Complete MTA-156 Series of Header Plug
View the Complete MTA-156 Series of Header Plug
Категория:
Гребенки
Артикул:
6769731
Наличие:
435
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
500
-
Производитель:
TE Connectivity
-
Тикер производителя:
TYC
-
Модель модификации:
1-640388-0
-
Модель:
bag
-
Артикул (SKU):
6769731
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/1-640388-0-te-connectivity-6769731
-
Operating Temp Range:
-55°C to +105°C
-
Type:
Wire to Board
-
Color:
Natural
-
Скачать Datasheet DDEController:
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=640388&DocType=Customer+Drawing&DocLang=English
-
No of Positions:
10
-
Voltage Rating:
600V
-
Current Rating:
7A
-
Style/Orientation:
Straight Header/Plug
-
Termination:
Solder
-
Material:
Polyester
-
Contact Plating:
Tin
-
Pitch:
3.96 mm
-
Gender:
Male
-
No of Rows:
1
-
Mating Type:
Friction Lock
