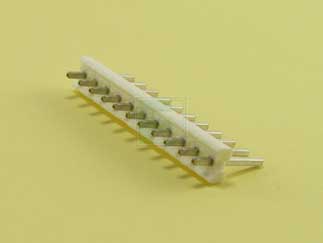

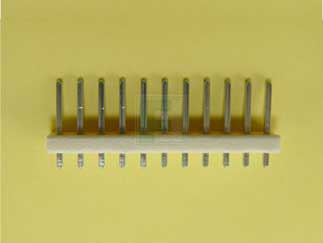

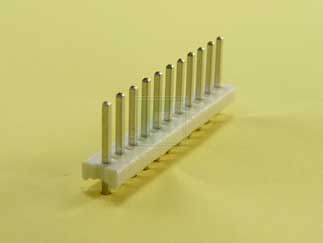

The 1-640383-1 is a MTA-156 11 Position Single Row Through-Hole Straight Wire to Board Header
Product Features:
Connector Type = Header
Product Line = MTA-156
PCB Mounting Orientation = Vertical
PCB Mount Retention = Without
Mating Connector Lock = Without
Four Points of Contact = Without
Shrouded = No
Mounting Ears = Without
Post Size (mm [in]) = 1.14 [.045]
Number of Positions = 11
Centerline (mm [in]) = 3.96 [0.156]
Narrow = No
Post Number(s) Omitted = None
Solder Tail Contact Material = Copper Alloy
Contact Type = Pin
Contact Shape = Square
Contact Plating, Mating Area, Material = Tin
Contact Base Material = Copper Alloy
Connector Style = Plug
Housing Color = White
Mating Alignment = Without
UL Flammability Rating = UL 94V-0
Housing Material = Polyester
View the Complete MTA-156 Series of Header Plug
View the Complete MTA-156 Series of Header Plug
Категория:
Гребенки
Артикул:
4731089
Наличие:
Нет в наличии
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
500
-
Производитель:
TE Connectivity
-
Тикер производителя:
TYC
-
Модель модификации:
1-640383-1
-
Модель:
box
-
Артикул (SKU):
4731089
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/1-640383-1-te-connectivity-4731089
-
Type:
Wire to Board
-
Скачать Datasheet DDEController:
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=640383&DocType=Customer+Drawing&DocLang=English
-
No of Positions:
11
-
Style/Orientation:
Straight Header/Plug
-
Termination:
Solder
-
Pitch:
3.96 mm
