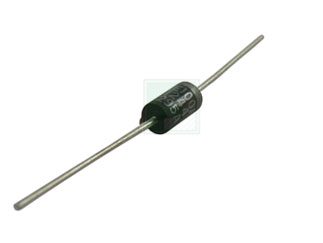

The 1.5KE16CA-E3/54 is a part of 1.5KE series TVS Diodes.It has an operating temperature ranging from - 55 °C to +175 °C and it is available in AXIAL Packaging.
Features:
Glass passivated chip junction
Available in uni-directional and bi-directional
1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Solder dip 260 °C, 40 s
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Applications:
MOSFET
Signal lines of sensor units
Computer
Industrial
Telecommunication
Категория:
TVS-диоды
Артикул:
4310702
Наличие:
616
-
Package Style:
AXIAL
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1400
-
Производитель:
Vishay
-
Тикер производителя:
GS
-
Модель модификации:
1.5KE16CA-E3/54
-
Модель:
reel
-
Артикул (SKU):
4310702
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--circuit-protection--tvs-diodes/1-5ke16ca-e3-54-vishay-4310702
-
Operating Temp Range:
-55°C to +175°C
-
Capacitance:
1925pF
-
Storage Temperature Range:
-55°C to +175°C
-
Power Dissipation:
1500W
-
Clamping Voltage-Max:
22.5V
-
Peak Output Current:
66.7A
-
Breakdown Voltage-Min:
15.2V
-
Breakdown Voltage-Max:
16.8V
-
Directional:
Bi-Directional
-
Reverse Leakage Current:
1µA
-
Peak Power:
1500W
-
Test Current:
1mA
-
Standoff Voltage:
13.6V
-
Скачать Datasheet 15ke.pdf:
http://www.vishay.com/docs/88301/15ke.pdf
