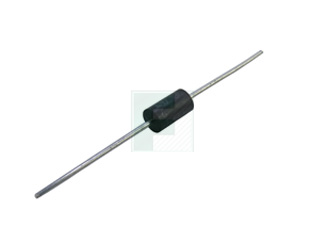

The 1.5KE Series is a Bi Directional Transient Voltage Suppressor. Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC's.
Features:
Peak pulse power : 1500 w (10/1000 µs)
Breakdown voltage range : From 6.8 v to 440 v
Uni and bidirectional types
Low clamping factor
Fast response time
UL recognized
Категория:
TVS-диоды
Артикул:
7422280
Наличие:
780
-
Package Style:
DO-201
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
7200
-
Производитель:
STMicroelectronics
-
Тикер производителя:
STM
-
Модель модификации:
1.5KE150A
-
Модель:
ammo pack
-
Артикул (SKU):
7422280
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--circuit-protection--tvs-diodes/1-5ke150a-stmicroelectronics-7422280
-
Operating Temp Range:
-55°C to +175°C
-
Capacitance:
850pF
-
Storage Temperature Range:
-65°C to +175°C
-
Reverse Current-Max:
1mA
-
Power Dissipation:
5W
-
Clamping Voltage-Max:
207V
-
Peak Output Current:
7.2A
-
Breakdown Voltage-Min:
143V
-
Breakdown Voltage-Max:
158V
-
Directional:
Uni-Directional
-
Reverse Leakage Current:
1µA
-
Peak Power:
1500W
-
Standoff Voltage:
128V
-
Скачать Datasheet en.CD00000663.pdf:
http://www.st.com/content/ccc/resource/technical/document/datasheet/03/7a/4e/3b/96/c3/4e/37/CD00000663.pdf/files/CD00000663.pdf/jcr:content/translations/en.CD00000663.pdf
